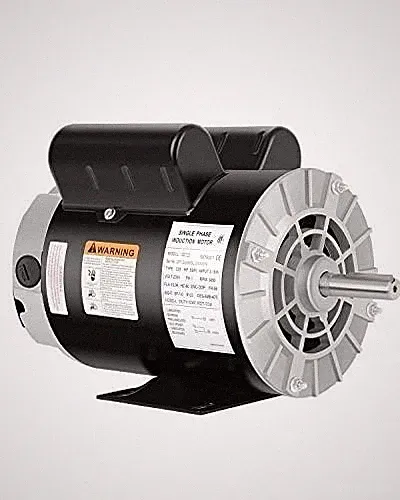

5HP Air Compressor Motor 3450RPM 230V 56 Frame CCW ODP Electric
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product
This is a 5HP electric motor specifically designed for air compressor duty. It operates at 3450 RPM, delivering power at 230V with a 3-phase configuration. The motor features a 56 frame size and a CCW rotation, making it suitable for direct replacement or new builds. Its Open Drip Proof (ODP) enclosure and rolled steel shell provide a balance of protection and cooling, while the IP55 rating offers some ingress protection against dust and water.
Our take
As a dedicated air compressor motor, this 5HP unit appears to be a solid choice for either replacing an old motor or building a custom compressor. The 3450 RPM and 230V, 3-phase power are standard for many medium-duty compressors, and the 56 frame size should offer good compatibility. The ODP enclosure means it's best suited for cleaner, drier environments, as it's not fully sealed. The rolled steel shell suggests durability, and the IP55 rating gives a reasonable level of protection for general workshop conditions.
Pros & Cons
Pros
- Dedicated 5 HP air compressor motor
- Standard 56 frame size
- 3-Phase 230V power
Cons
- ODP enclosure not fully sealed
- Clockwise rotation not an option
Specifications
- Brand Cuilvu
- Shaft Diameter 5/8"
- Amperage 15A
- Color Black
- Enclosure ODP
- Frame Size 56 Frame
Show all 20 specifications
- Frequency
- 60 Hz
- Horsepower
- 5 HP SPL
- IP Rating
- IP55
- Manufacturer
- Cuilvu
- Material
- Rolled Steel Shell
- Model
- 132722-5334-1730317441
- MPN
- 132722-5334-1730317441
- Phase
- 3-Phase
- Rotation
- CCW
- Shaft Length
- 1.88"
- Speed
- 3450 RPM
- Type
- Air Compressor Duty Electric Motor
- Voltage
- 230V
- Country of Origin
- China
