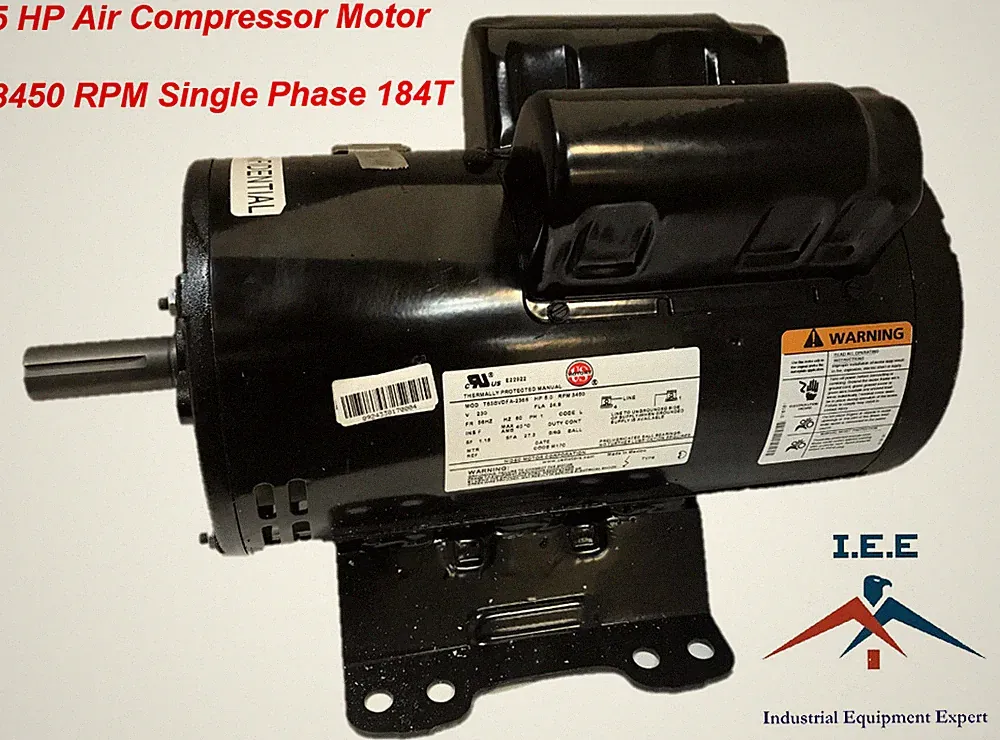

23378805 IR Replacement 5 HP Air Compressor Electric Motor 3450 RPM 24.9 AMP
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product
This US Motor 5HP single-phase electric motor is a replacement unit for Ingersoll Rand (IR) compressors, operating at 3450 RPM on 230V. It features a 7/8 inch shaft, a 60 Hz AC frequency, and an Induction/Asynchronous motor type. The motor has a non-standard NEMA Y frame suffix (56Y) and a 1.15 Service Factor, drawing 24.9 amps at full load.
Our take
If you're specifically looking for a replacement 5HP motor for an Ingersoll Rand compressor, this US Motor unit with the 56Y frame could be a direct fit. The 3450 RPM speed means your compressor will recover quickly, which is great for continuous use. The 7/8 inch shaft is standard for many setups, and the 1.15 Service Factor offers some buffer against intermittent overloads. Just be aware that it's a non-reversible motor, so ensure it matches your specific application's rotation requirements. The 230V single-phase input is typical for this power level.
Pros & Cons
Pros
- Direct IR replacement
- 5HP rated load
- 3450 RPM for fast recovery
- 1.15 Service Factor
- 7/8 inch shaft
Cons
- Non-reversible operation
- NEMA Y (non-standard) frame
Specifications
- AC Motor Type Induction/Asynchronous
- Model 5HP IR U.S.M. 56Y
- NEMA Frame Suffix Y (Non-Standard NEMA Mount)
- AC Frequency Rating 60 Hz
- Current Type AC
- AC Phase Single Phase
Show all 12 specifications
- Shaft Diameter
- 7/8 in
- Rated Load (HP)
- 5
- Brand
- US Motor
- Nominal Rated Input Voltage
- 230 V
- Reversible/Non-Reversible
- Non-Reversible
- Service Factor
- 1.15
